John Deere Expands Compact Grading with SmartGrade Box Blades

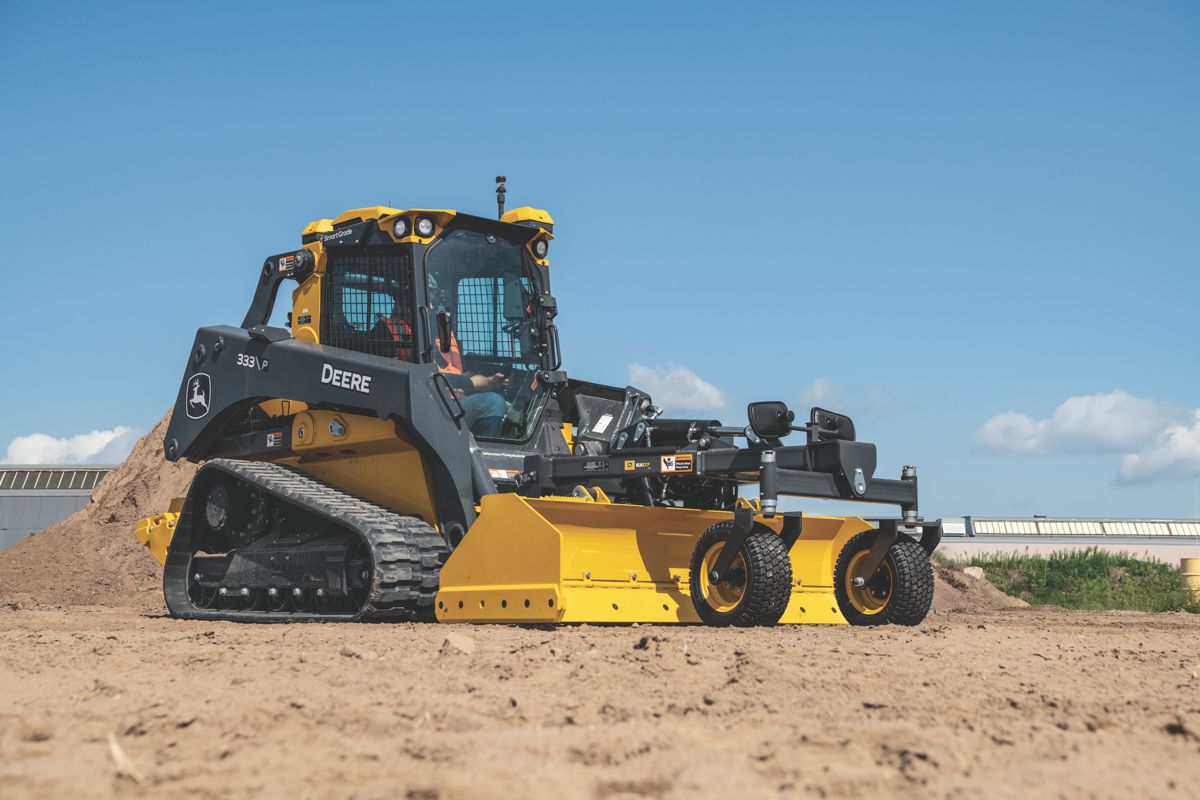

John Deere has introduced two SmartGrade box blade attachments for its 333 and 335 P-Tier compact track loaders, bringing integrated grade control to finish grading applications without requiring a dedicated grading machine. The BX07 and BX08 combine hydraulically controlled blade hardware with the loaders’ onboard systems, initially offering 2D and laser-based grading, with full 3D capability planned for a later release.
The new attachments give contractors another option for site preparation, landscaping and smaller civil engineering projects, particularly where restricted working areas make conventional grading equipment less practical. John Deere has also introduced an integrated fire suppression system for large-frame skid steer and compact track loaders operating in high-debris environments.
Briefing
- John Deere has introduced the BX07 and BX08 SmartGrade box blades for its 333 and 335 P-Tier compact track loaders.
- The BX07 has a nominal working width of 7 feet, while the BX08 measures 8 feet.
- Both attachments are available with 2D and laser-based grading, with full 3D SmartGrade capability planned.
- Hydraulically actuated flip-up front wheels, adjustable wheel height and a recessed valve block feature in the new designs.
- A separate integrated fire suppression option uses a 20 lb tank and compact control panel to protect loaders working in debris-intensive applications.
Precision Grading with Compact Equipment
Compact track loaders are widely used for excavation support, material handling and surface preparation, particularly on sites where space is limited or contractors need a single machine to perform several different tasks. Finish grading places greater demands on blade control, however, with small variations in elevation affecting drainage, surface tolerances and the amount of material needed to achieve the specified profile.
The BX07 and BX08 extend John Deere’s SmartGrade technology into attachment-based grading, integrating the box blade with the loader’s machine controls. Both have been developed specifically for the 333 and 335 P-Tier models, allowing the grading system to operate within a defined machine and control configuration.
Emily Pagura, product marketing manager at John Deere, said:ย “Customers continue to look for new ways to improve their operations and performance while also maximizing their overall jobsite productivity,
“Our new SmartGrade Box Blade attachments for the compact track loader lineup expand customer capabilities through precision technology that speeds up the grading process with accuracy.”
The attachments join John Deere’s existing range of grade control equipment, which includes SmartGrade configurations for compact track loaders and larger earthmoving machinery. Their introduction provides another route for contractors to undertake precision grading with machines already used for other site operations.
From 2D Control to 3D Grading
John Deere is initially offering the BX07 and BX08 with 2D and laser-based SmartGrade capability, covering applications where operators need to maintain specified elevations or slopes across a working area.
Two-dimensional systems control grading against a defined elevation or slope, while laser-based arrangements use an external reference plane to maintain consistent levels. Both can reduce the amount of manual checking and adjustment required during finishing work, provided the equipment is correctly configured for the site.
Full 3D SmartGrade capability is planned for a future release. This would allow grading against digital design models, extending the attachments’ potential use to more complex surface profiles and projects where machine control data is already part of the construction workflow.
John Deere has not announced a date for the introduction of 3D functionality. Contractors considering the attachments for model-based grading will therefore need to distinguish between the capabilities available at launch and those still under development.
The manufacturer has also not provided comparative grading accuracy or productivity figures for the new attachments, leaving their performance relative to conventional grading methods to be established through operational experience.
Box Blade Design and Hydraulic Control
The BX07 and BX08 have nominal working widths of 7 feet and 8 feet respectively, providing two attachment sizes for the compatible compact track loaders.
Both incorporate hydraulically actuated flip-up front wheels and adjustable wheel height, allowing operators to change the attachment configuration according to working conditions. The wheel assemblies provide support during grading, while their ability to be repositioned offers flexibility when moving between different operations.
John Deere has also recessed the hydraulic valve block into the attachment structure to improve visibility from the cab. On compact track loaders, the position of hydraulic components and structural members can affect the operator’s view of the cutting area, particularly when working close to buildings, kerbs or other obstacles.
The attachments use a heavy-duty box design with edge protection intended to withstand abrasive materials and demanding site conditions. The combination of structural reinforcement and hydraulic adjustment reflects the mechanical demands of finish grading, where the cutting edge must maintain a consistent relationship with the working surface while handling variable ground conditions.
John Deere has not detailed the attachment weights or hydraulic requirements in its announcement. Those specifications, together with the available machine control configurations, will be relevant when selecting between the two models.
Integrated Fire Suppression for Compact Loaders
Alongside the SmartGrade attachments, John Deere is introducing an integrated fire suppression system for large-frame skid steer and compact track loaders, aimed particularly at operations where combustible debris can accumulate around machinery.
The system incorporates a 20 lb fire suppression tank and a compact control panel installed directly on the machine. Its integrated arrangement is intended to provide equipment protection without relying on a separately configured external installation.
Compact loaders working in vegetation management, recycling, demolition and similar environments can encounter substantial quantities of dust, fibres and combustible material. Debris accumulating around hot engine or exhaust components presents a particular concern, especially during prolonged operation in demanding conditions.
John Deere has not specified the suppression agent, activation method or applicable certification standards in the announcement. These details will be relevant to fleet operators assessing the system for particular working environments, alongside existing cleaning, inspection and fire prevention procedures.
Expanding Compact Loader Capabilities
The BX07 and BX08 give contractors operating compatible John Deere compact track loaders the option of undertaking controlled finish grading without introducing another dedicated machine to the site. For businesses already using SmartGrade technology elsewhere in their fleets, the attachments may also provide a familiar approach to grade control across different equipment categories.
Their practical value will depend on the type and volume of grading work undertaken, the available machine control configuration and the attachment’s performance under site conditions. The planned addition of 3D capability could extend their use on projects employing digital terrain models, although that functionality is not yet available.
John Deere has not disclosed pricing for either attachment or the new fire suppression system. The BX07 and BX08 are available with 2D and laser SmartGrade capability, while the fire suppression option provides an additional equipment protection measure for loaders operating in debris-intensive applications.
Key Industry Questions
- Which John Deere compact track loaders are compatible with the new SmartGrade box blades?ย The BX07 and BX08 have been developed specifically for John Deere’s 333 and 335 P-Tier compact track loaders. Compatibility with other models has not been confirmed.
- What are the working widths of the BX07 and BX08?ย The BX07 has a nominal width of 7 feet, while the BX08 measures 8 feet.
- Are the attachments available with 3D SmartGrade?ย Not yet. Both attachments are available with 2D and laser-based grading, with full 3D functionality planned for a future release.
- What is the difference between 2D and 3D machine control?ย 2D systems control blade elevation or slope against a defined reference. 3D systems use digital design models and positioning technology to guide grading across more complex surfaces.
- Why do the attachments use adjustable front wheels?ย The hydraulically actuated flip-up front wheels and adjustable wheel height allow operators to configure the attachments for different grading conditions.
- Can the SmartGrade box blades be used with other compact loader brands?ย John Deere has announced compatibility with its 333 and 335 P-Tier compact track loaders only. No universal compatibility has been established.
- Which loaders can be fitted with the new fire suppression system?ย John Deere describes the system as available for large-frame skid steer and compact track loaders, although the announcement does not identify every compatible model.
- Does the fire suppression system activate automatically?ย The manufacturer has not specified whether activation is automatic or manual in the supplied announcement.
Strategic Takeaways
- Integrated box blade grading extends the range of finishing operations that can be undertaken with compatible compact track loaders.
- The BX07 and BX08 are designed around specific John Deere machines, making compatibility an important consideration for mixed fleets.
- The planned introduction of 3D SmartGrade could expand the attachments’ use on projects working directly from digital design models.
- Hydraulic wheel adjustment, visibility and structural durability remain central to grading attachment performance alongside electronic control.
- Integrated fire suppression offers an additional equipment protection option for loaders operating in environments where combustible debris presents a risk.
